At TechFlow Design & Manufacturing Inc., we know the extrusion process and die design better than anyone. We understand our business and how to assist our clients in meeting their objectives. TechFlow develops innovative products that help improve the clients’ performance.


Auto Gauge

Techflow Is Proud to Unvail the All New TDK-500.
Patented US Pat. US11618200

Techflow Is Proud to Unveil the All New TDK-500.

Flatter Film, Less Waste, Enhanced Processability.

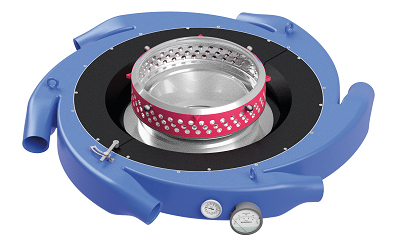

The TDK-500 Insta Gauge Automatic Air Ring provides a reliable and effective solution for controlling transverse direction film thickness, which ensures a uniform film gauge on blown film extrusion lines. The TDK-500 quickly puts production on gauge, on time, by using a re-envisioned approach to air modulated gauge control.


Breaking the rules a bit further, the TDK-500 has a tool-less access method for cleaning the narrow primary lip exit after process residues build up. This helps to avoid partial air flow blockage.  In addition, the entire lip set can be removed and replaced in a matter of minutes while the air ring remains installed on the extrusion die.  Meticulous design efforts have led to a unique modular design giving users the industry’s best flexibility in production versatility.

With D.R. Joseph interfaces, every detail has been carefully thought out to provide an intuitive user interface and a control design that is reliable, easy to understand and troubleshoot. The TDK-500 control system can also be seamlessly integrated with the DRJ 3G IBC Control System for a single point of control for all bubble cooling!


See below how the TDK-500 Insta Gauge exceeds expectations in auto gauge air ring design and performance!

  • Secondary lip air modulation for quick, precise gauge correction
  • Low pressure design to maintain maximum cooling efficiency and production rate


  • The TDK-500 improves on the implementation of airflow modulation for gauge control by using secondary lip air modulation where the velocity changes are more effective.  This leads to a quicker reaction time and higher control resolution than primary lip air modulation.  Further this also fully permits the primary lip to achieve its job of holding a stable bubble by isolating the primary lip cooling from the gauge control air adjustments.


  • Using Techflow’s 30+ years of experience & data collection in airflow analysis, the internal flow channels and gates are designed to minimize pressure drop and avoid turbulent airflow to efficiently make control changes without disturbing bubble stability.


  • wntime.
  • 50% improvement in gauge variation
  • Quick and reliable airflow adjustment


    • Controlling transverse direction film thickness significantly reduces resin costs by only producing the required film gauge. It also simultaneously guarantees that thin spots do not effect the film integrity or processability.

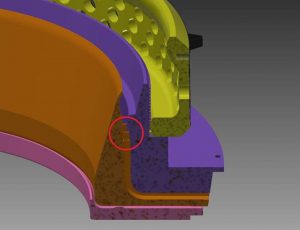

    • The air flow from each control zone is constrained in an independent channel that extends to just before the secondary lip exit. This eliminates zone cross mixing and provides a more direct and effective control response to the film (see orange zone, to right).


    • Internal components are specified to the highest degree for consistent and reliable performance, even in harsh running conditions. Safety features are built in to prevent damage and costly do
  • Easy Lip Set Swap
  • Adjustable forming cone
  • Can be ran as a conventional air ring

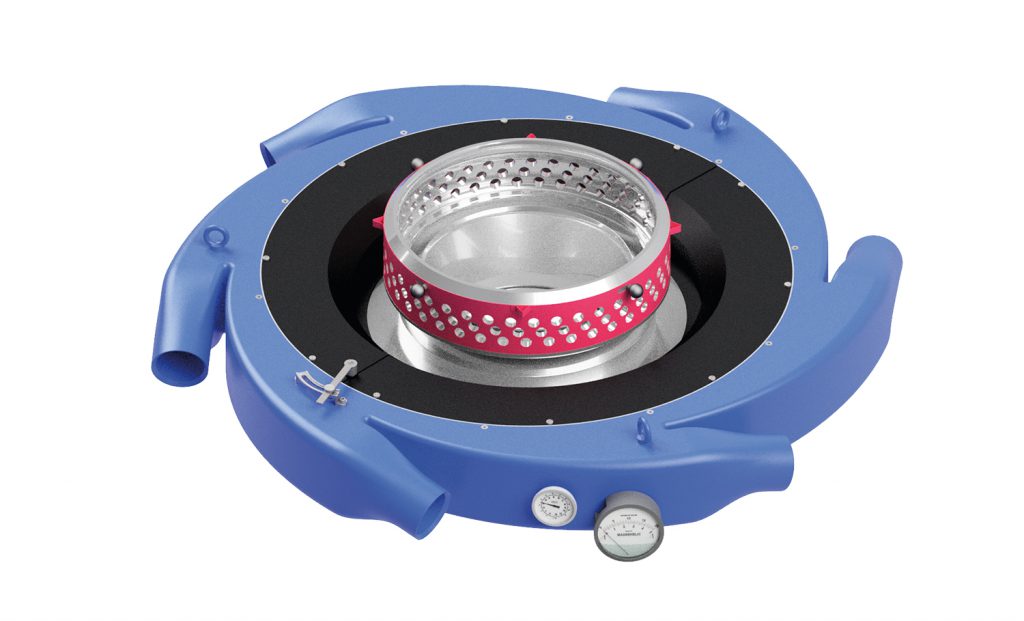

  • Built-in Magnehelic and temperature gauge


The unit was designed for easy component swap-out, to expand the range of products that can be ran on a single air ring.


An example of this advanced design is the facility of a toolless lip set swap.  The lip set can be instantly swapped without tools, and without elevating the air ring off of the die; a time and cost saving measure which expands the versatility of the air ring.  Optional weight reduction is available for easier lifting from a 3D printed polycarbonate cooling collar (patent pending).


This level of modularity also drastically reduces the required effort to clean the die.

  • Primary Lip: Single adjustment point with reference position
  • User interface with 19” (482mm) color touch screen

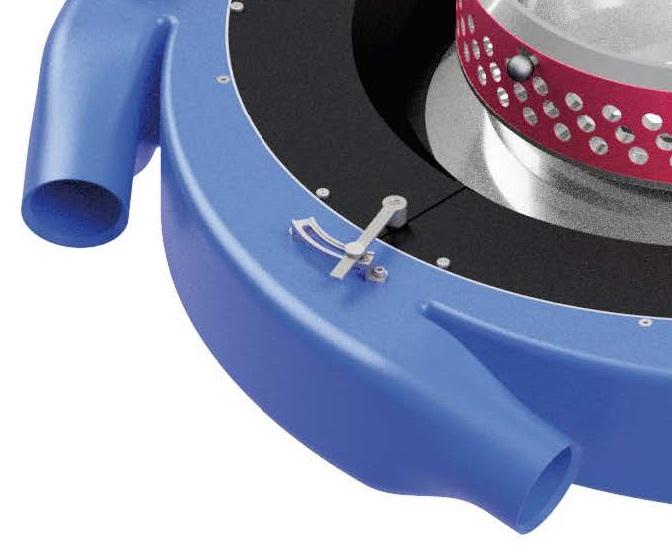

The primary lip adjustment has been redesigned to facilitate set-up and reduce the intimidation factor of adjusting an air ring. The TDK-500 features a single adjustment point with a reference lever to adjust the primary lip, as shown to the right.


The benefit with the easy adjust lever is that there is now a reference point for the primary lip setting. This facilitates start-up by providing a setting that can be recorded and repeated for various jobs and SOP. There is no guess work involving the current set point for the primary lip with a visual reference marker.


Adjusting an air ring just got easier.

Inline Gauge Measurement for TDK-500 Automatic Air Ring

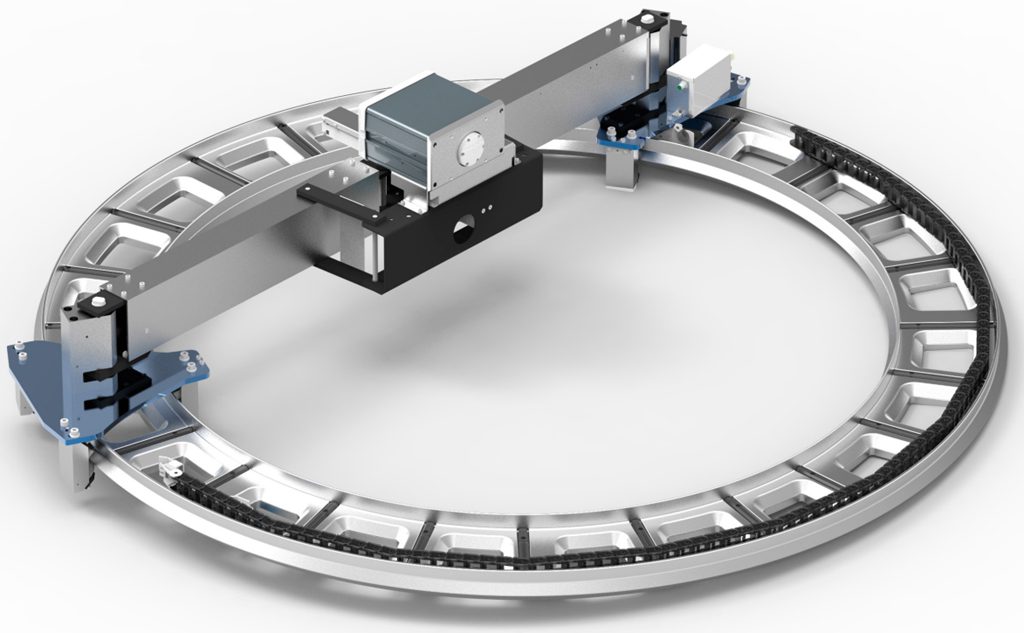

Kündig K-500 Rotomat KT Thickness Gauge

The K-500 Rotomat KT is a new, completely redesigned thickness gauge for blown film lines.


Rapid and accurate measurement of film thickness allows the film production process to be tightly controlled. As a result, film quality is enhanced and maintained during the entire production process.


Optimizing film thickness profiles with the TDK Auto Gauge Air Ring contributes to material savings. In addition, material waste during product changes is reduced.


The capacitive thickness sensor of the K-500 is protected by a cover made from sintered ceramic with a very smooth surface. That allows an extremely low wear measurement of film thickness, even though the K-500 is constantly in contact with the film.


The Rotomat KT in the third generation comes standard with a virtual data processor. The VDP Process runs in the background of a Windows PC, similar to a driver of a printer. This Win32 application forms the interface between the control system of the line and the thickness gauge.

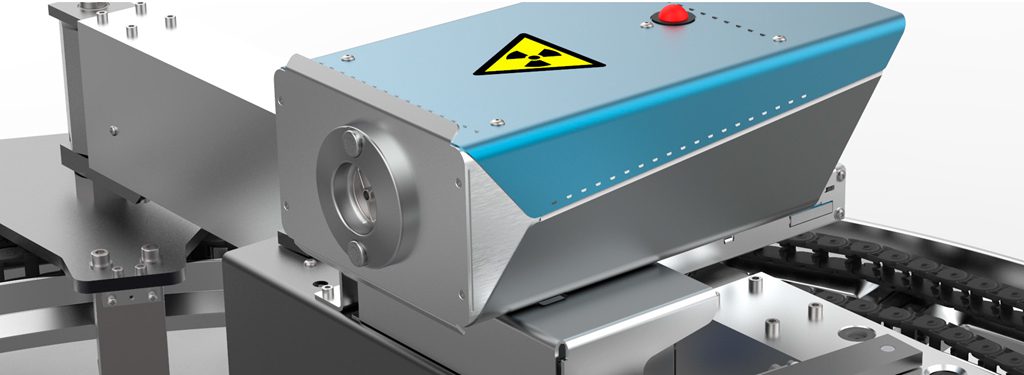

Non contact thickness gauges are also available for sticky or touch sensitive films. Additionally, Kündig offers the K-XRAY measurement head using electrically generated X-ray to measure gauge for barrier films.


Learn More about Kündig thickness gauges!


Automatic Air Ring Experts

The TDK-500 leverages the expertise of three specialized companies; Techflow Design & Manufacturing, D.R. Joseph, Inc. and Kündig Control Systems.  This unique collaboration has brought together industry leading tech to produce one of the most refined air ring solutions on the market. A seamless integration of Kündig gauge measurement, Techflow air ring design, and D.R. Joseph air flow control means that users get total control of bubble cooling – both Internal Bubble Cooling, and Air Ring Control, all in one spot.
