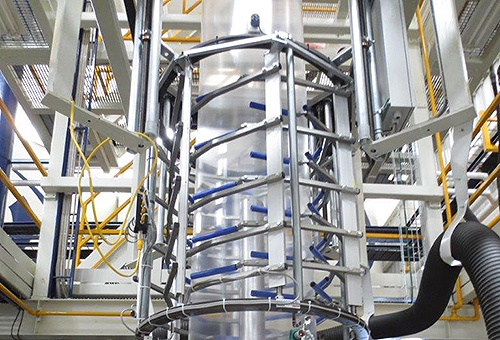

Techflow Design’s standard bubble cages come equipped with adjustable motorized sizing arms that “Open and Close” to adjust bubble diameter complete with visual analog size display. Motorized elevation system allows vertical adjustment to ensure maximum bubble stability. Mounting brackets available to easily accommodate IBC position sensors. Low friction rollers to reduce drag. All motorized adjustments controlled from a remote panel.
Bubble Cages
Standard
Standard Features:
- Consisting of 6 levels of 8 arms each
- Linked curved arms for maximum bubble stability
- Analog size display
- Standard PBT rolls (polybutilen-tereftalate resin)
- Motorized height adjustment
- Motorized open-close arm movement for diameter adjustment
Optional Features:
- Special rolls, colour black (resin weighted with bicoloured molybdenum)
- Easily adaptable hardware for Ibc sensors
- Water cooled arms
